Rhino winch mounting bracket. Compatible with all Rhinos. Compatible with all Warn MT Series winch kits.

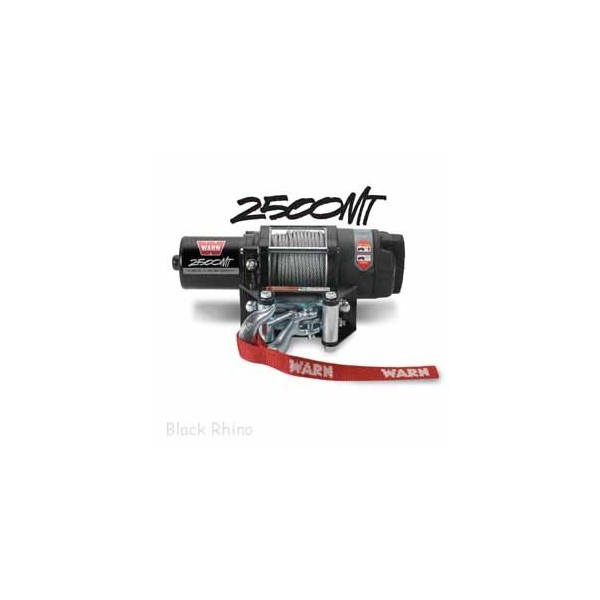

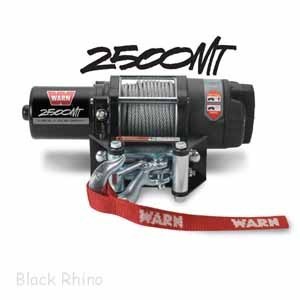

Warn 2500# Winch

This is the winch you want when you need to pull up to 2,500 lbs. using wire rope. As the industry standard, this unit is great for pulling a heavy load or recovering a stuck UTV. Features include the Warn patent-pending brake to hold you on steep inclines, a reliable all-metal 3-stage planetary geartrain, an efficient electrical system that allows for longer pulls with minimal battery drain, and a Mini-rocker switch for great control.

Winch mounting kit NOT INCLUDED

Features

• Includes tree trunk protector & D shackle.
• 2500 lb pulling capacity.
• 50 ft of durable 3/16 wire rope.
• All metal 3 stage planetary gear train.
• Fully sealed to keep out the elements.
• Patented disc brake for excellent control.
• Short throw clutch.
• Mini-rocker switch.
• Limited lifetime warranty.

• Capacity: 2500 lbs. (1134 kgs)
• No-load Linespeed: 18 ft./min. (5.5m/min)
• Full-load Linespeed: 5 ft./min. (1.5 m/min)
• Motor*: 12V DC, .9 hp (.7 kW) permanent magnet, Sealed
• Control: Sealed mini-rocker control switch
• Geartrain: All-metal 3-stage planetary
• Gear Ratio: 154:1
• Clutch (freespooling): Sliding pin and ring gear
• Brake: patented disc brake
• Rope: 50' Aircraft-grade Wire 3/16" diameter (15m, 5mm diam.)
• Drum Diameter/Length: 2.0"/2.9" (52mm / 74mm)
• Fairlead: Roller
• Recommended Battery*: 12 Amp/hour minimum
• Battery Leads: 8 gauge
• Duty Cycle: Intermittent
• Warranty: Limited Lifetime (valid in USA and Canada only)
• Winch Weight: 15.6 lbs. (7.1 kgs)
• Winch Dimensions: 13.1" L x 4.5" D x 4.7" H (33.3cm L x 12cm D x 12cm H)
• Mounting Bolt Pattern: 3.0" x 4.87" (76 x 124mm
